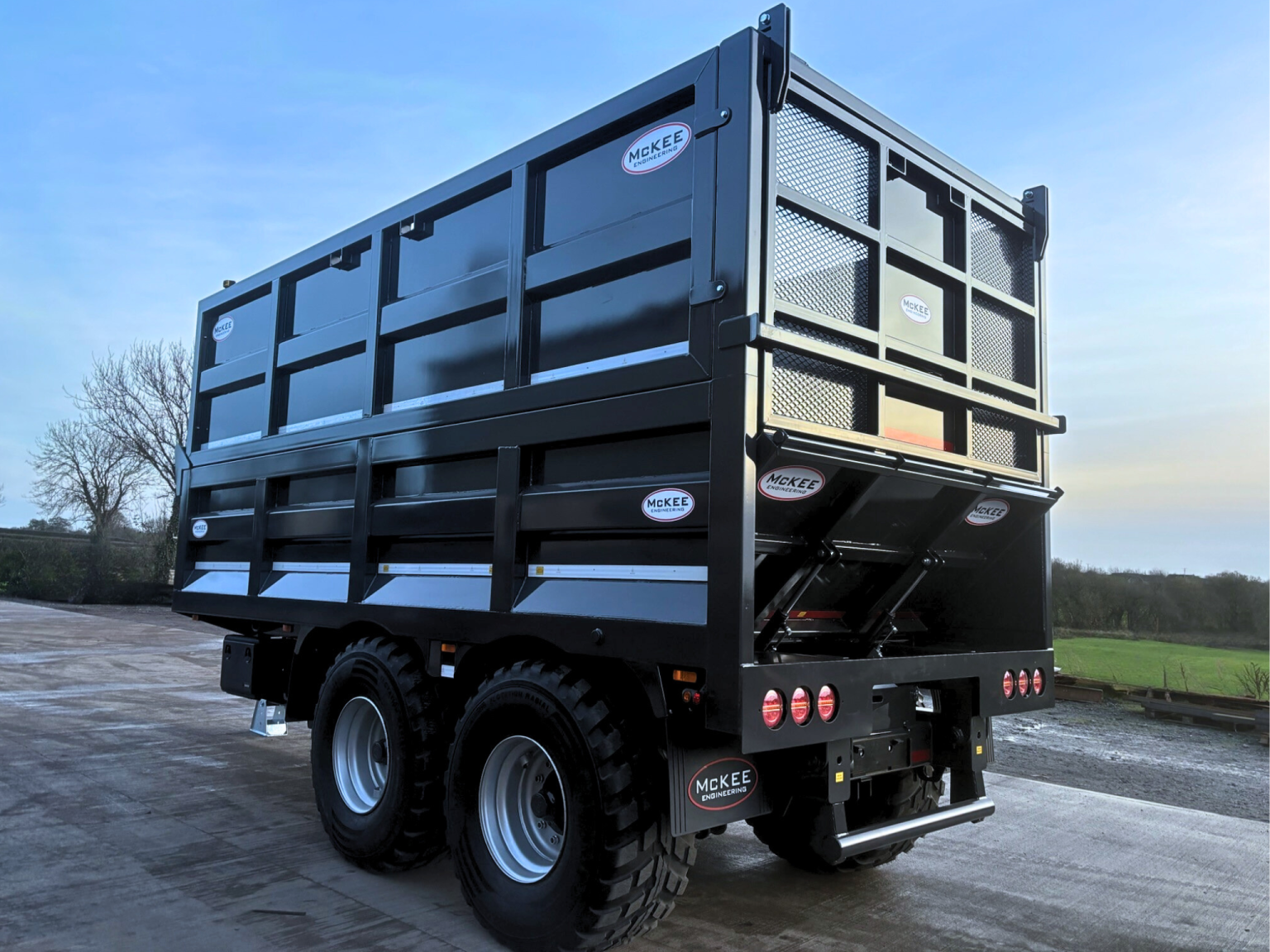

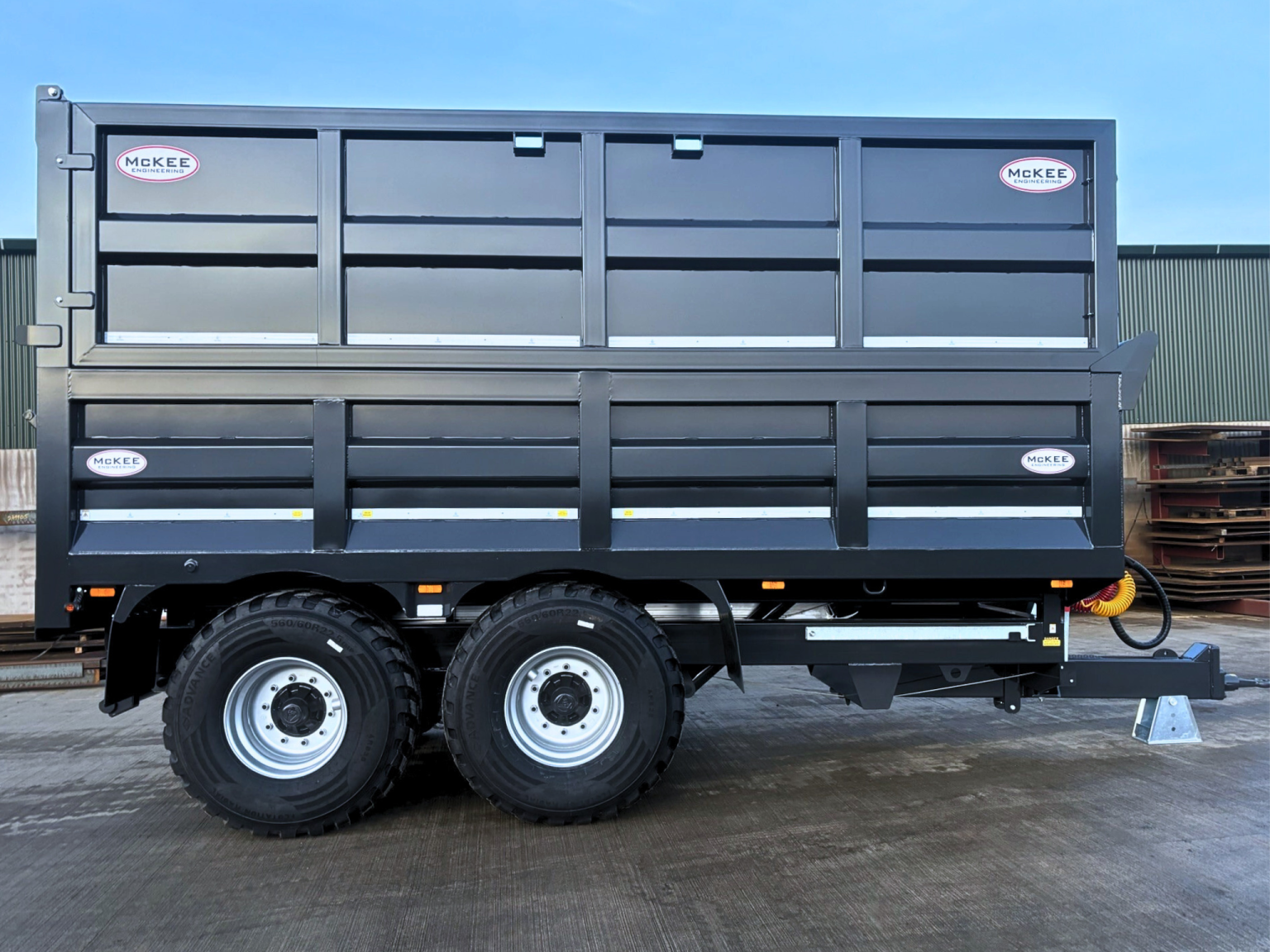

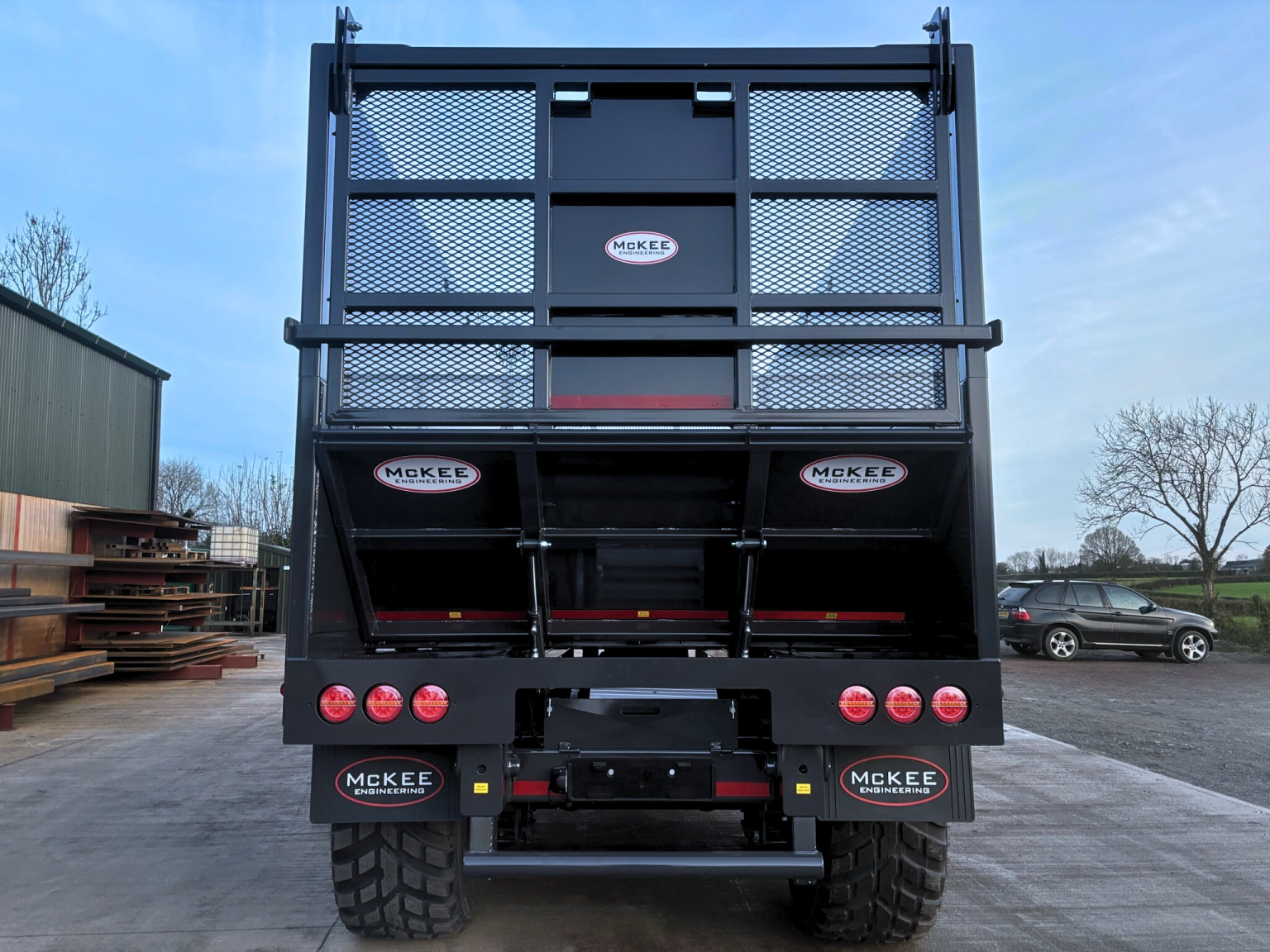

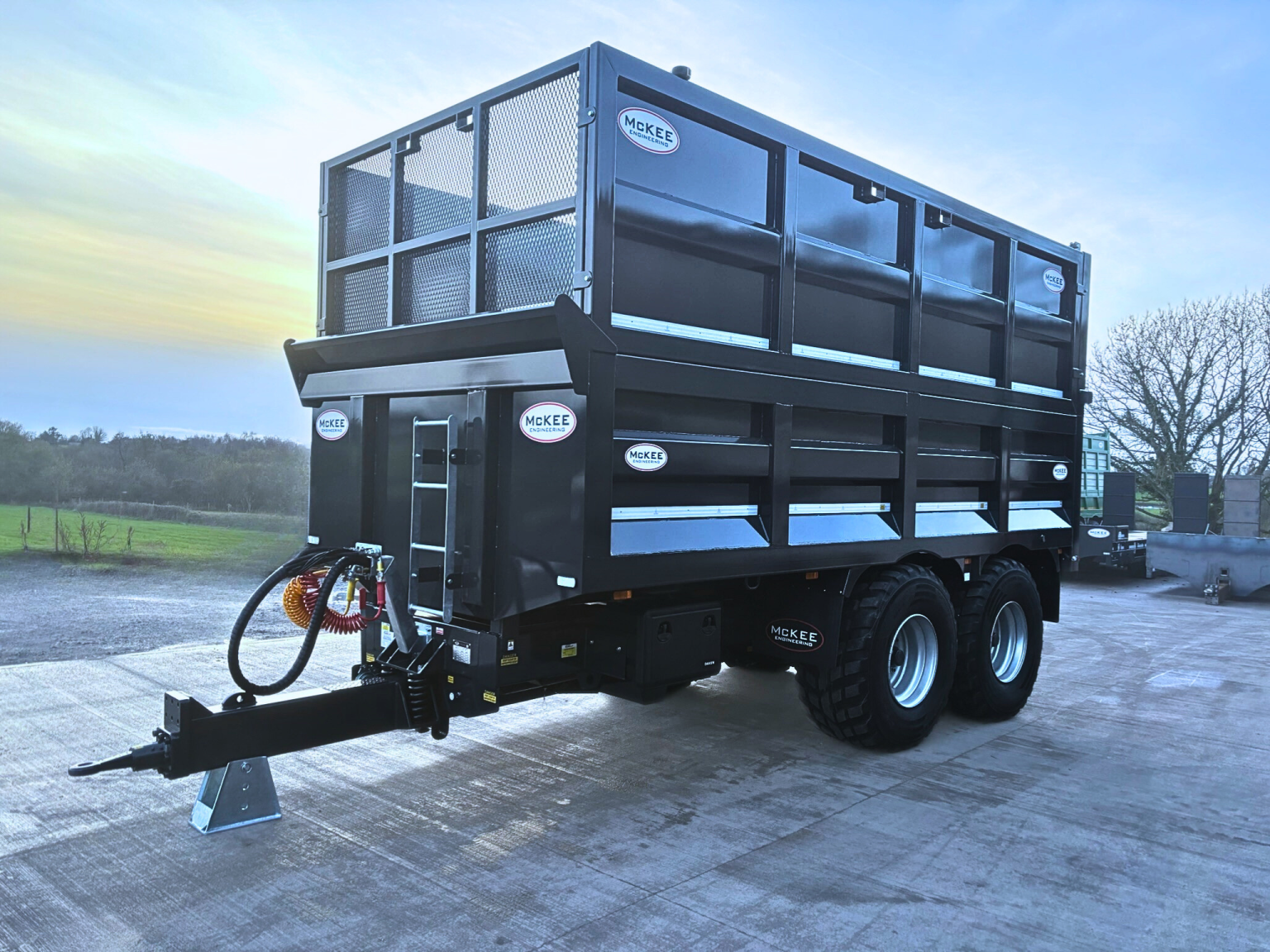

20-Ton Multipurpose Dump Trailer
& Free Shipping
- Body Size: 5.4m x 2.55m x 0.95m.
- Flooring: 10mm floor plating.
- Tipping Rams: Twin 12-ton 43″ chrome hydraulic rams.
- Chassis: 250×150 heavy wall box section.
- Sub-Chassis: 200×100 heavy wall box section.
- Axles: 10-stud commercial.
- Braking: Air/hydraulic with load-sensing valve.
- Suspension: 3-leaf parabolic.
- Tail Door: Hydraulic up-and-over.
- Side Frame: 8mm full box-type side cribs.
- Tyres: 560x60x22.5 radial wheels.
- Drawbar: Sprung, made from 8×3 channel and internally plated.
- Toe Eye: Adjustable swivel toe eye.
- Lighting: LED front/side lights & triple hamburger rear lights, reflective tape on sides and rear.
- Parking Brake: Ratchet-type manual.
- Finish: Shot blasted and 2-pack painted in choice of colour.
- Warranty: 1-year manufacturer’s warranty.
Additional Features:
- Galvanised swan neck, ladder, body prop, and drawbar stool.
- Rear mud flaps.
Optional extras available upon request
