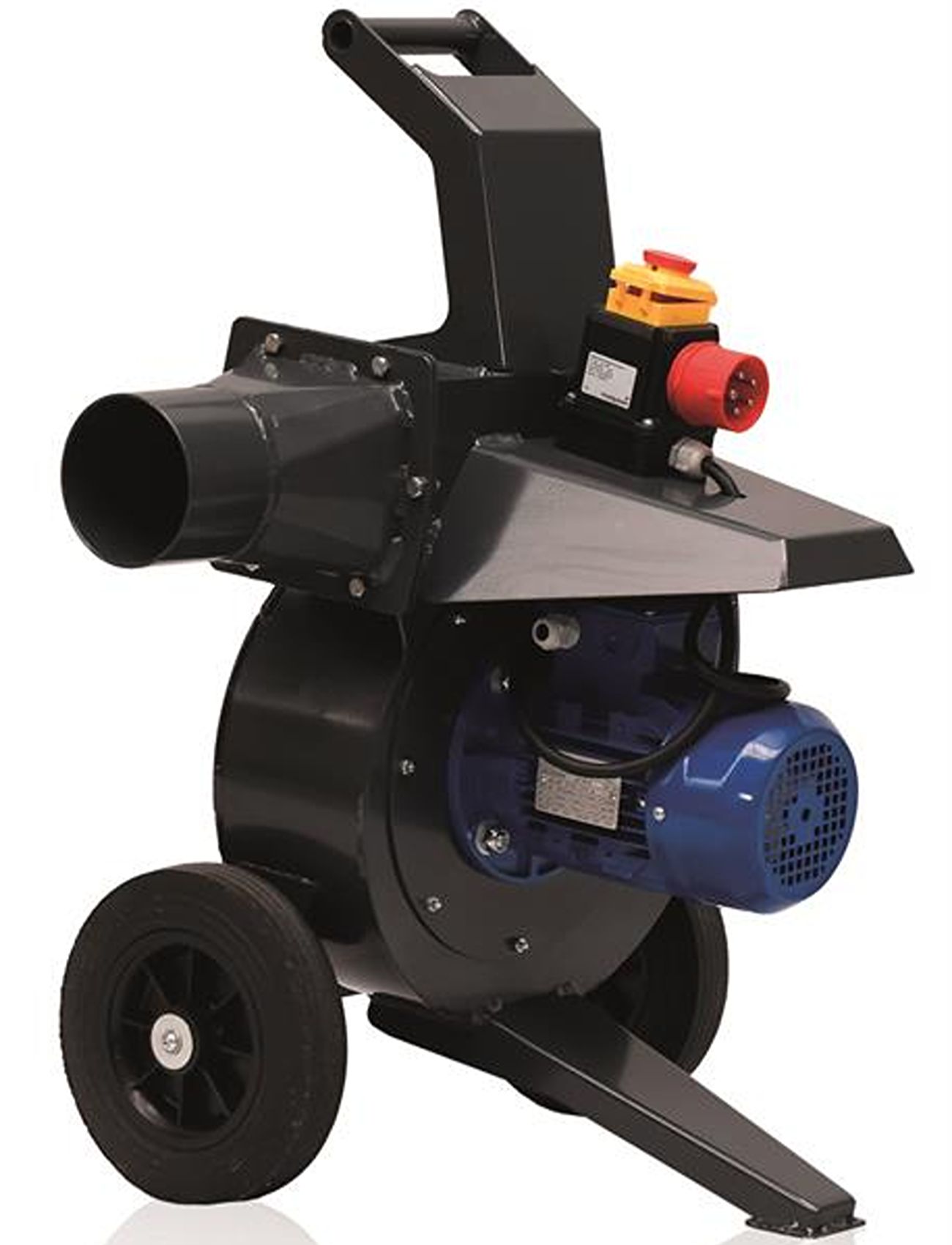

OE 1.1 Pro
– Drive: Electric motor
– RPM (min-1): 2860
– Electric motor power (kW): 1.1
– Required hydraulic oil flow (l/min)
– Maximum hydraulic oil flow (l/min): –
– Type of protection: IP 54
– Suction hose diameter and length (mm/m): 140/2
– Pressure hose diameter and length (mm/m): 120/5
– Suction and pressure hose diameter (mm/m) –
Width (mm): 662
– Length (mm): 539
– Height (mm): 855
– Weight (kg): 30

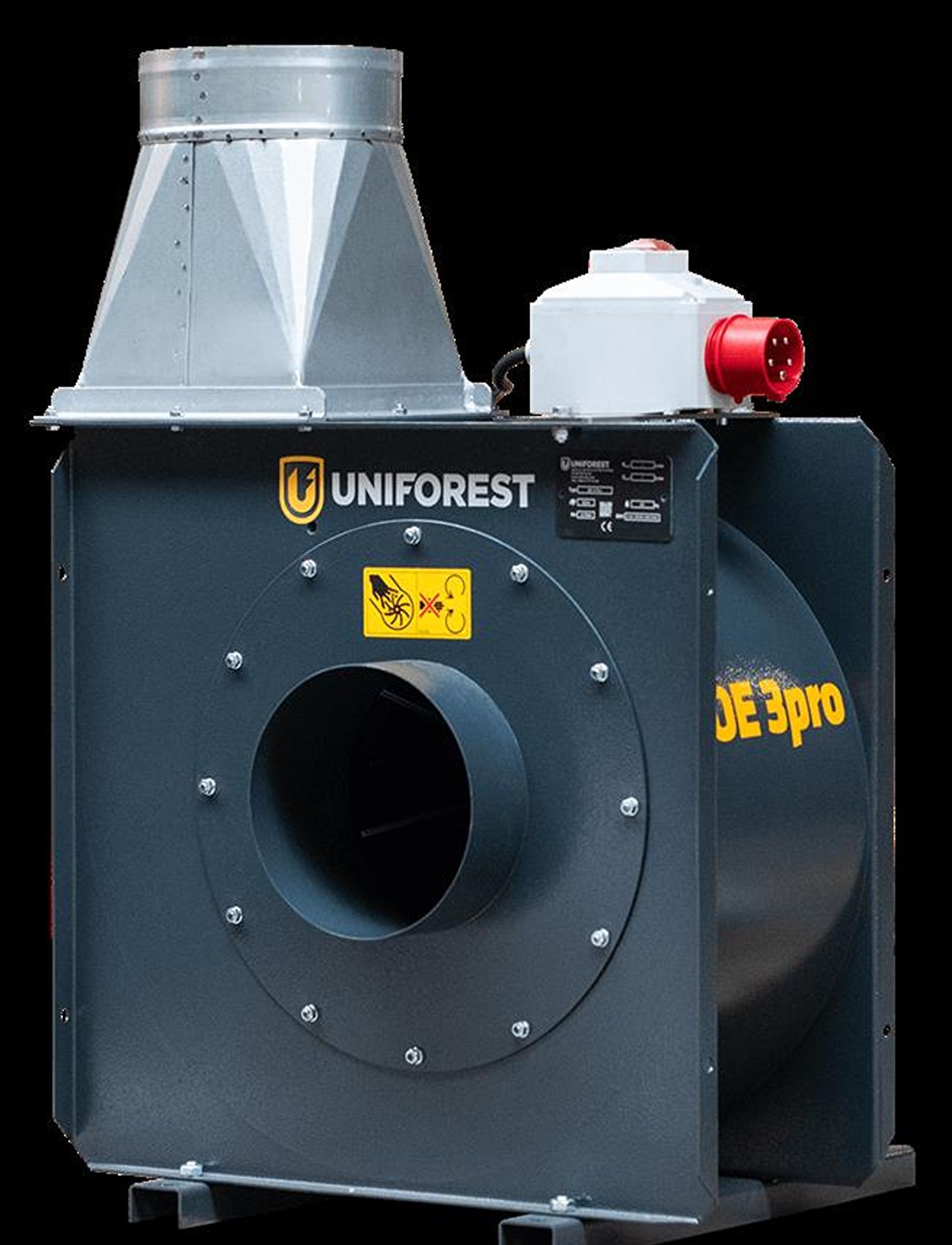

OE 3 Pro
– Drive: Electric motor
– RPM (min-1): 2860
– Electric motor power (kW): 3
– Required hydraulic oil flow (l/min): –
Maximum hydraulic oil flow (l/min): –
– Type of protection: IP 54
– Suction hose diameter and length (mm/m): –
– Pressure hose diameter and length (mm/m): –
– Suction and pressure hose diameter (mm/m): 200/10
– Width (mm): 590
– Length (mm): 620
– Height (mm): 590 – Weight (kg): 63

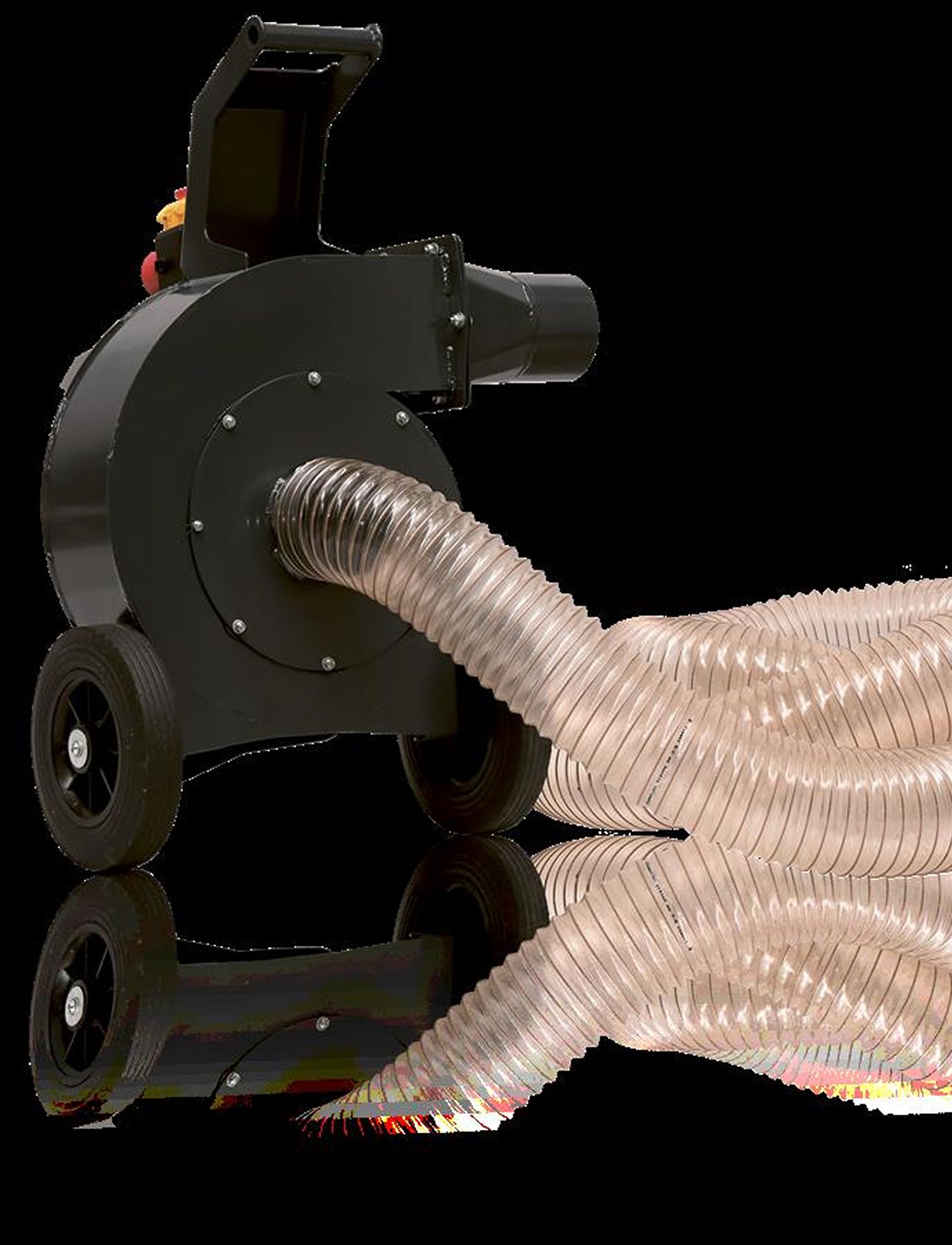

OH Pro
– Drive: Hydraulic motor
– RPM (min-1): 2860
– Electric motor power (kW): – –
Required hydraulic oil flow (l/min): 20
– Maximum hydraulic oil flow (l/min): 80
– Type of protection: –
– Suction hose diameter and length (mm/m): 140/2
– Pressure hose diameter and length (mm/m): 120/5
– Suction and pressure hose diameter (mm/m): –
– Width (mm): 662
– Length (mm): 539
– Height (mm): 855
– Weight (kg): 45
