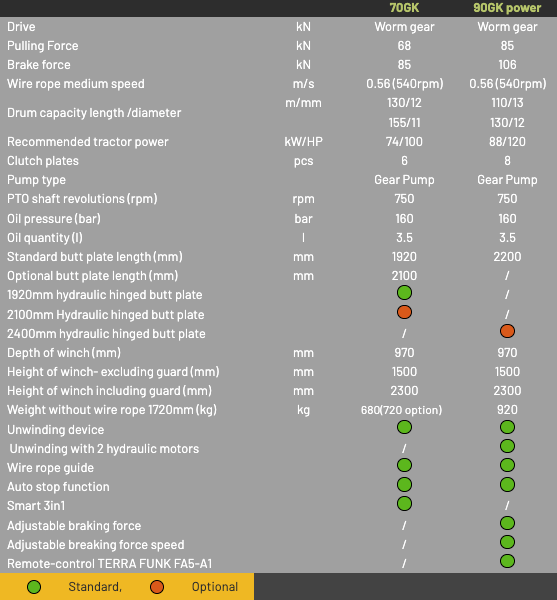

Technical Specifications:
Key Features:
HOW DO WE PROVIDE A CONSTANT PULLING FORCE?

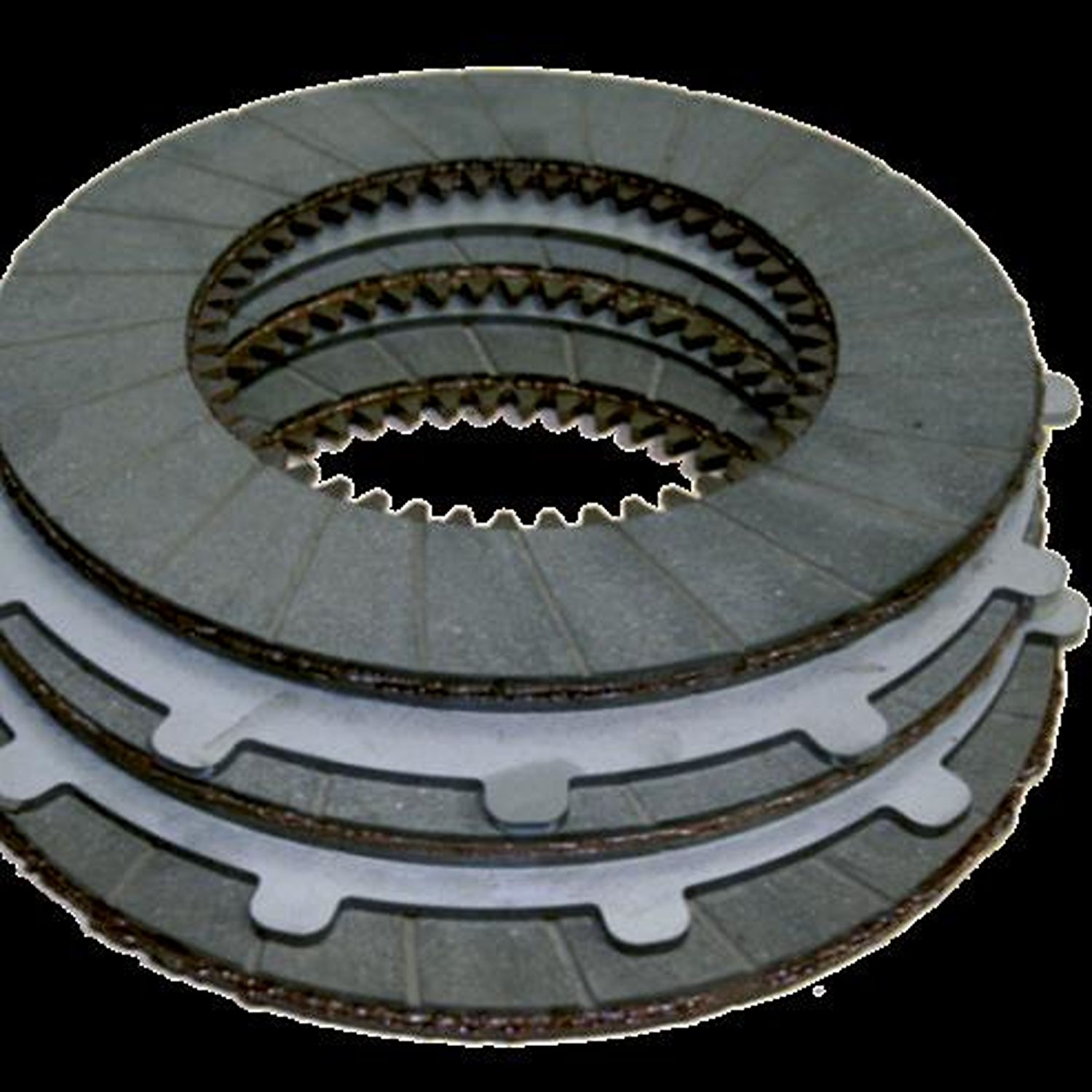

Active Force Control is a special pulling force measurement and regulation solution. The pulling force is measured directly on the wire rope and is electronically regulated. Thus, the pulling force does not depend on the wear of the clutch, temperature and humidity, the preload of the wire rope, and the amount of wound wire rope on the drum. Thus, the pulling force remains the same at all times, the pulling rope is thinner and consequently longer, and the tractor can be of lower power. A lighter wire rope helps to increase productivity and faster wood harvesting on the one hand and to reduce user fatigue on the other.
ADJUSTABLE SPEED AND BRAKING FORCE
Adjustable braking force (progressive break system)Adjustable braking force allows the wire rope to be unwound without the unwinding device, regardless of the force on the pulling rope between the winch and the load.

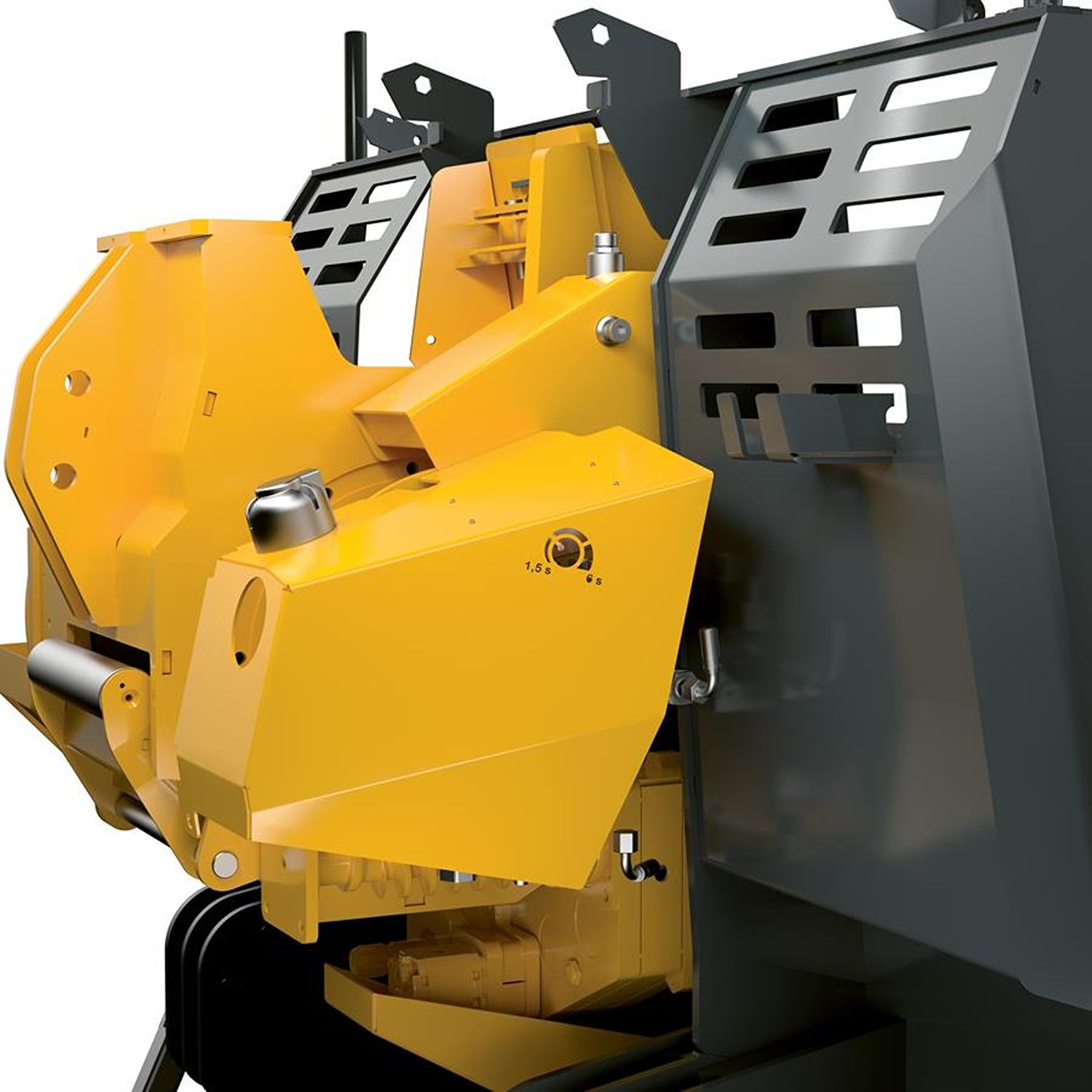

UNWINDING DEVICE AND AUTO STOP
To make the wire rope unwinding easier you can choose a winch with an integrated unwinding device. This type of winch also guarantees a constant tension of the wire rope between the unwinding pulley and the drum, thus preventing damage to the drum or pulley and enabling a longer service life. AUTO STOP function(limit switch) automatically stops the function of winding the wire rope on the drum. This function prevents mechanical damages of the unwinding device, entanglement and wire rope damages.
