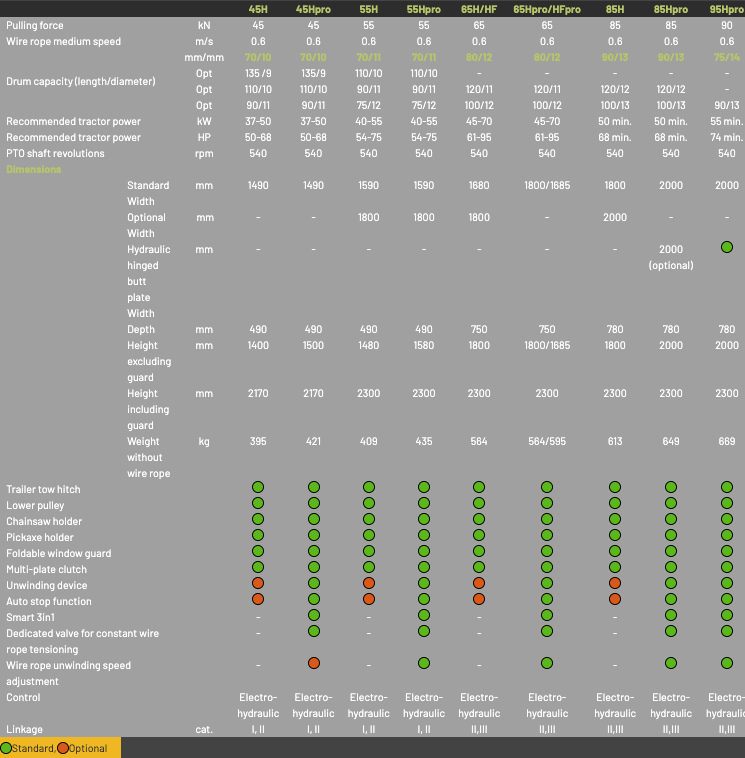

Technical Specifications:
Key Features:

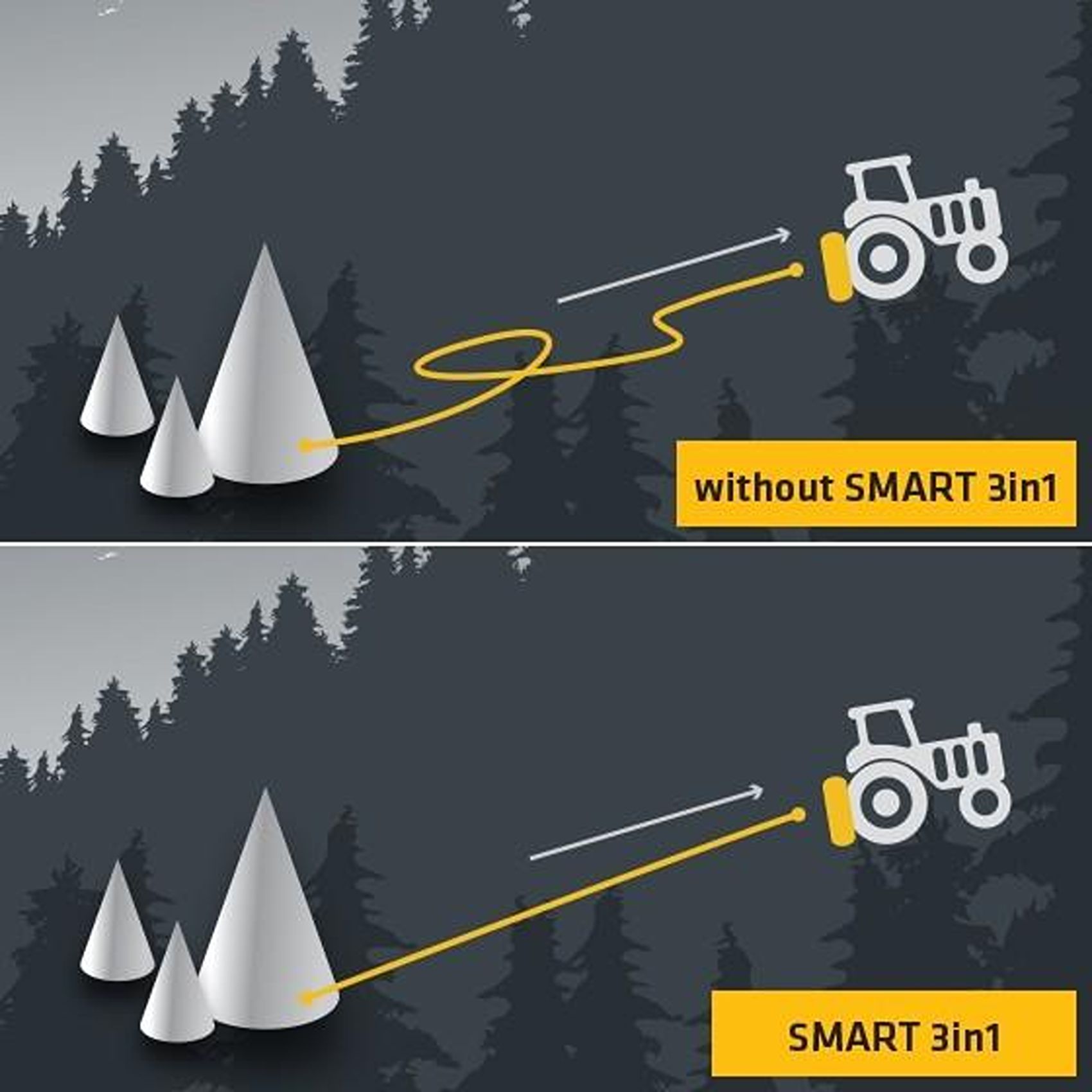

SMART 3IN1
(1) When pulling logs with a tractor, you may encounter some obstacles on the road (hill, roots etc.). If the tractor is not able to overcome these obstacles, the unwinding function can be switched into the mode without the assistance of the unwinding device and you can continue driving with a taught wire rope between the winch and the load. (2) The unwinding device can be turned on and off without delay (the standard model has a 1.5 sec. delay). (3) The SMART 3in1 function ensures additional tension of the wire rope between the unwinding pulley and drum. This function is only available with the remote controls Teleradio, Terra funk and manual console.

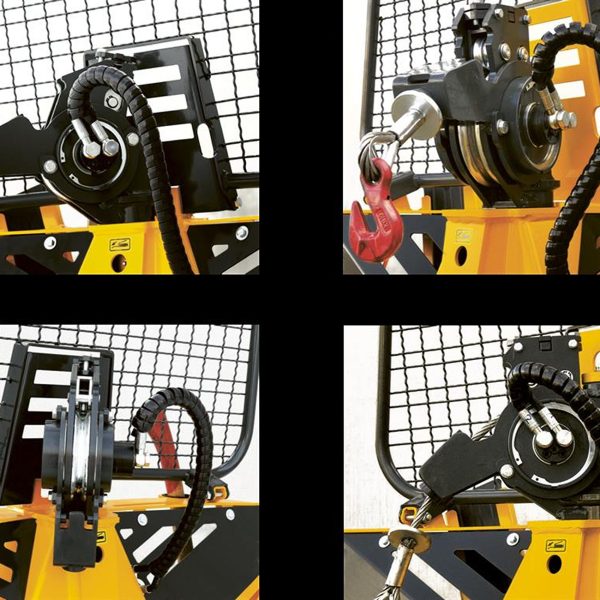

UNWINDING DEVICE AND AUTO STOP
To make the wire rope unwinding easier you can choose a winch with an integrated unwinding device. This type of winch also guarantees a constant tension of the wire rope between the unwinding pulley and the drum, thus preventing damage to the drum or pulley and enabling a longer service life. AUTO STOP function (limit switch) automatically stops the function of winding the wire rope on the drum. This function prevents mechanical damages of the unwinding device, entanglement and wire rope damages.

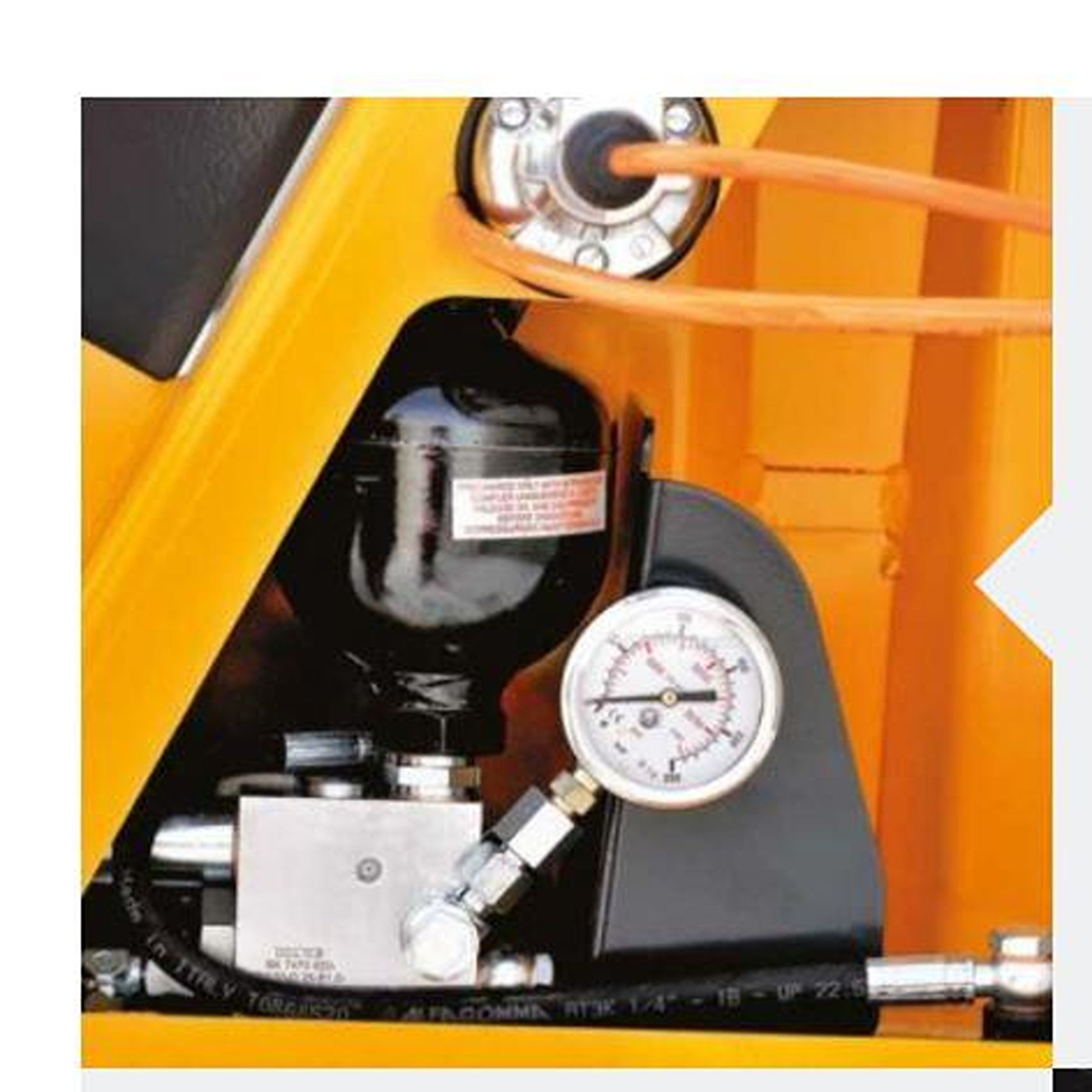

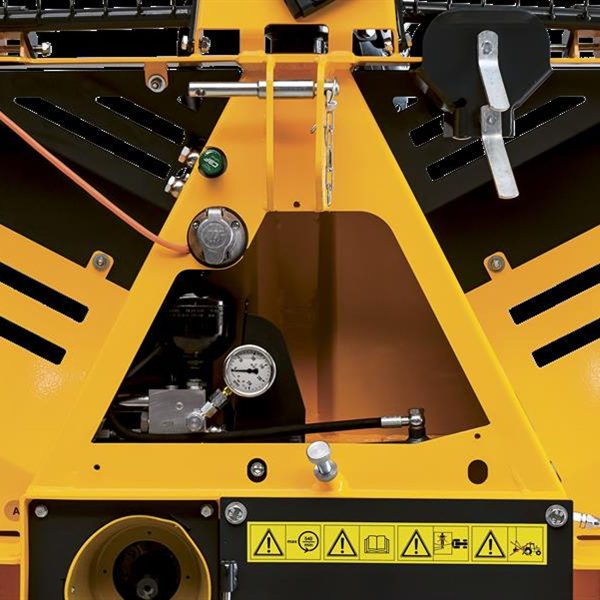

HAWE ELECTROMAGNETIC CONTROL
HAWE electromagnetic control valves with high pressure filter in the control block. Hydraulic components are galvanically corrosion protected. The oil tank is made of stainless steel.

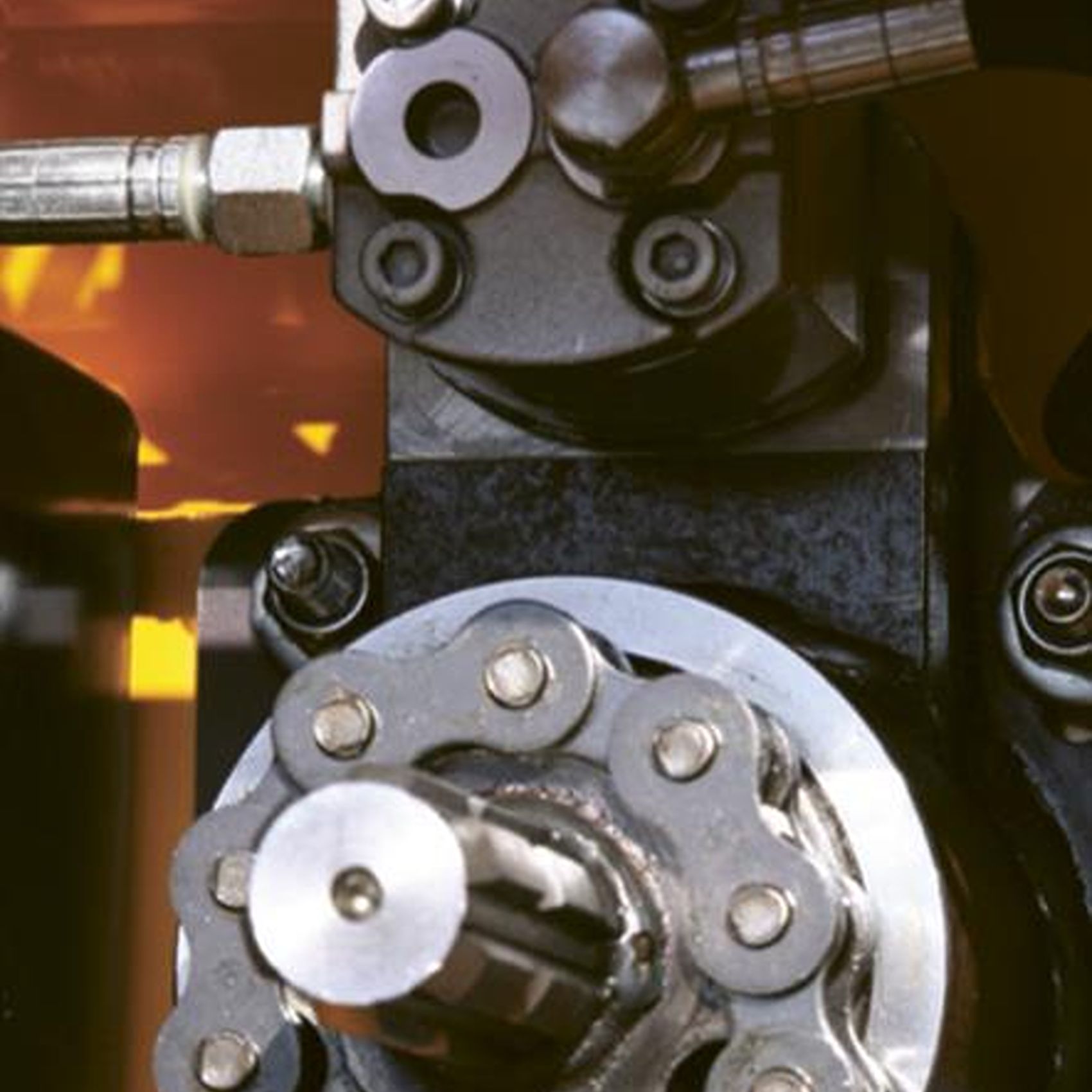

GEAR-DRIVEN HYDRAULIC PUMP
Hydraulic pump is gear driven. High-pressure oil filter preventing dirt from entering the hydraulic block.
