Description:

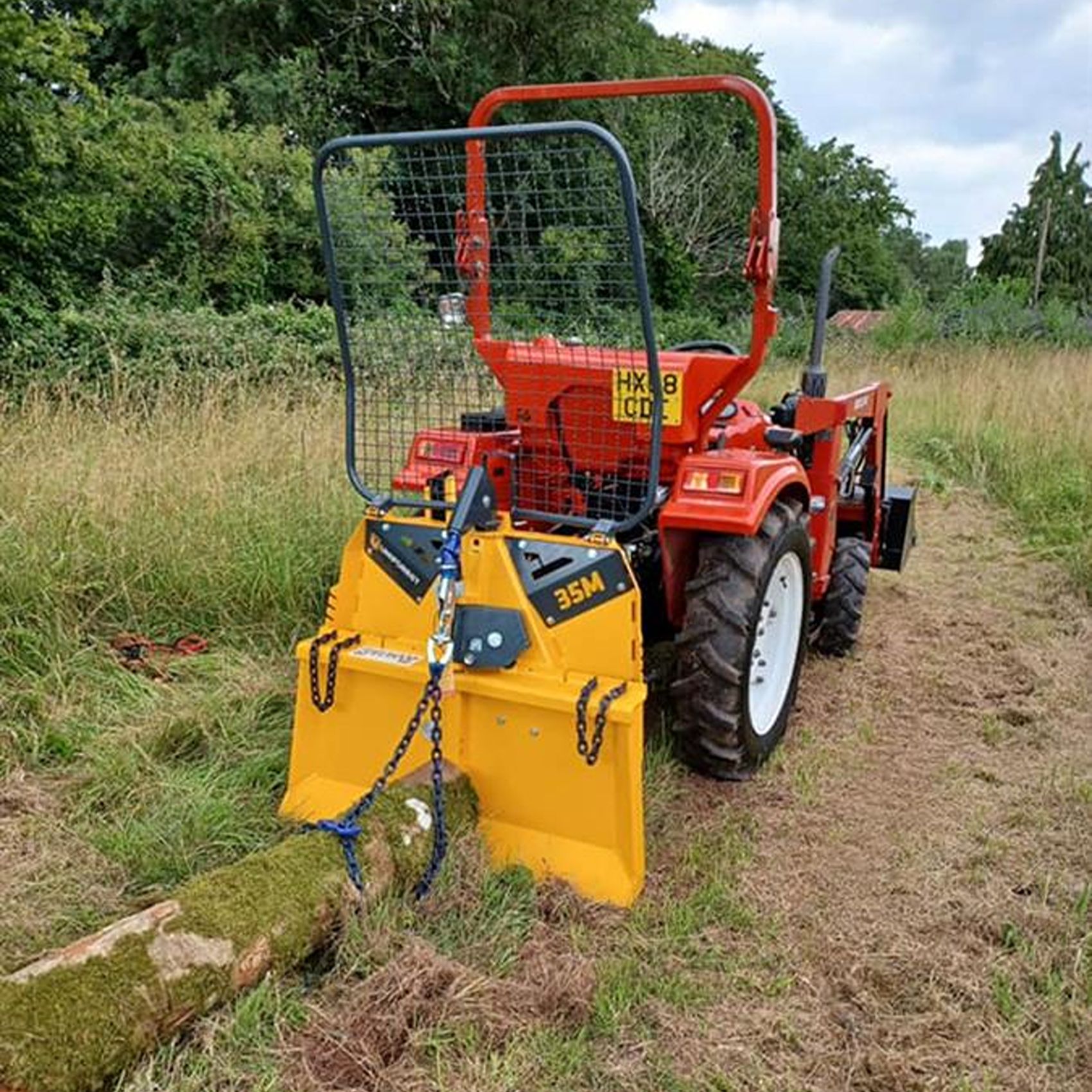

Forestry Winches PREMIUM – SERIES M. The mechanical forestry winches of the M series have a pulling force from 3.5t to 8.5t.

The mechanical forestry winch 85 MR is the largest in its series with a pulling force of 8.5t and for tractors with min. 68 HP.

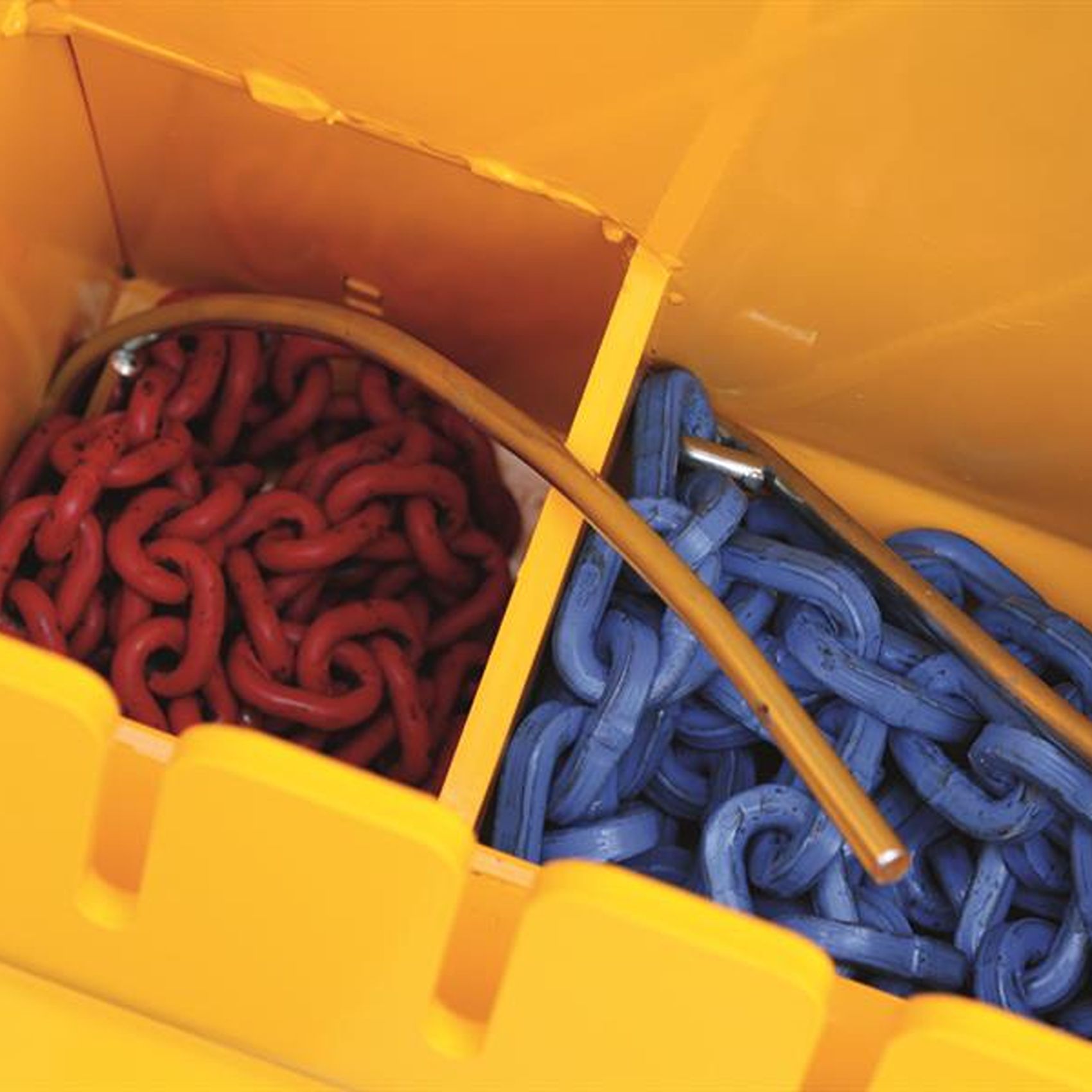

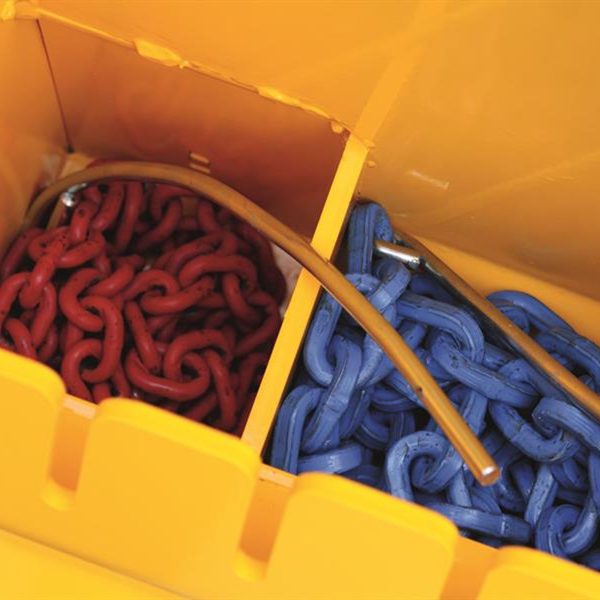

Mechanical forestry winch 85 MR with puling force 8.5t has large storage spaces on the front of the winch (butt plate) that are patented. The winch has integrated reduction gear, which allows the same pulling force to be achieved with less tractor power and, consequently, also reduces its consumption. The window guard is foldable, which makes transport easier. A winch recognizable design with a robust construction and a compact butt plate prevents wear and makes it easy to work.

  • Plenty of room on the front side of the butt plate
  • Foldable window guard
  • Robust construction
  • Superior design with ergonomic shape

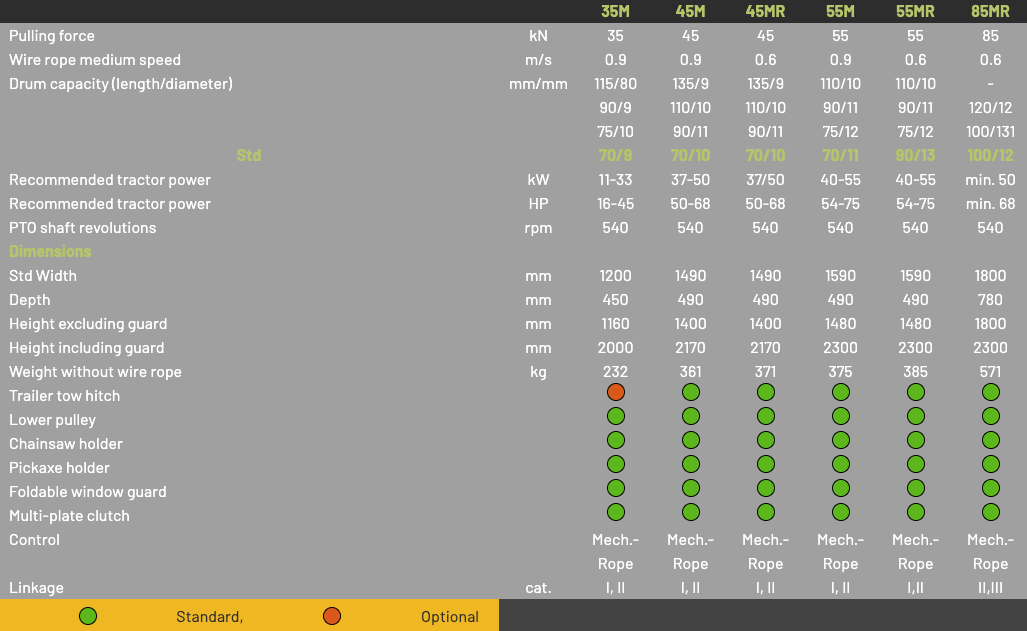

Technical Specifications:



Key Features:



SHORTENED HAND CORD
The hand cord for engaging the pulling mechanism is only 60 cm long. Less force is required to pull the cord for disengaging the brake or achieving full pulling force.



LUBRICATION-FREE BEARINGS
Lubrication free sealed ball bearings (FAG) ensure uninterrupted unwinding and winding of the wire rope; no lubrication is required.

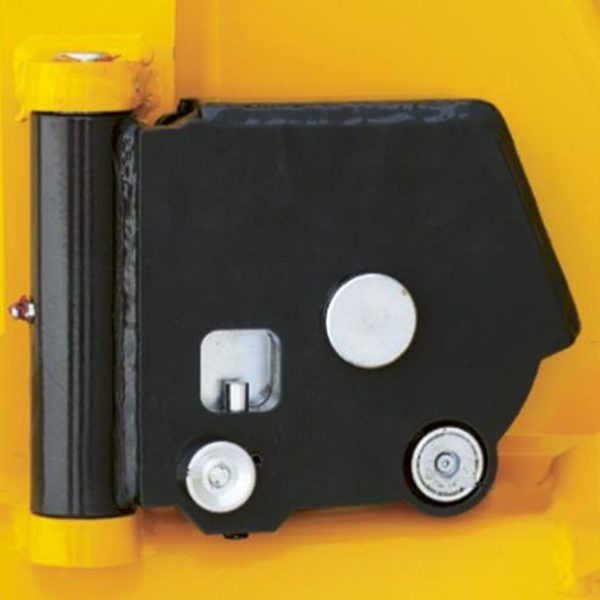

ROBUST HANDBRAKE
Easy & precise adjustment of the band brake.



LONG-LASTING BUTT PLATE
Robust butt plate is reinforced with wear-resistant flat steel.
