Technical Specifications:
Key Features:
Durable & Powerful Harvester Chainsaw Bar
Powerful, smooth cutting
Harvester 18H Solid bar and chain

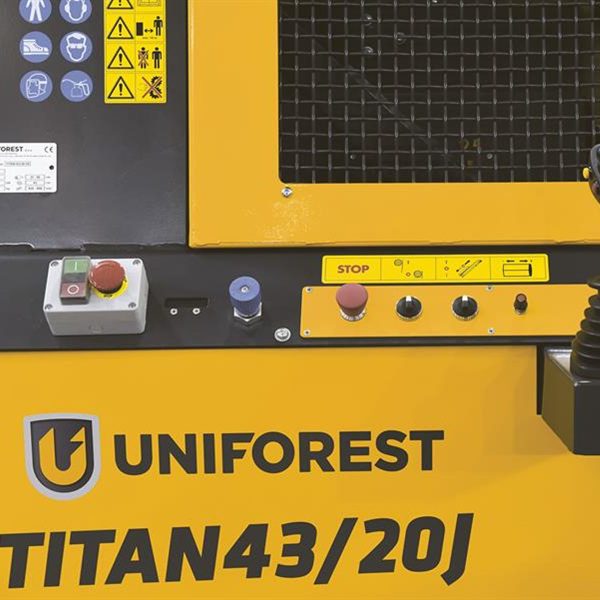

CONTROL PANEL
- Activation in case of an electric motor.
- Harvest chainsaw bar speed regulation.
- Emergency stop.
- Optional deactivation switch for the retaining plate.
- On/off and reverse movement adjustment of the conveyor belt.
- Switch for saving time when splitting short logs.
- Electronic control lever – joystick.
Settings and service
- Oil tank for automatic chain lubrication with an oil level indicator.
- Splitting length 25, 33, 40 or 50 cm.
- The pressure gauges indicate the splitting pressure and the system pressure for auxiliary functions.
- Chain lubrication adjustment system.
Lifting Table (Option)
For easier work, the LT650 lifting table with a width of 1700 mm can be mounted in the front.
Adjustable easy change Splitting knives
The splitting knife is adjustable to cater for different diameter of logs splitting combinations available :- 2-4, 2-6, 2-8, 2-12
Large 20 ton splitting pusher
A powerful 20ton splitting force ensures the hardest of timber are split, the pusher also has a large area to minimise twisting as logs are being split
Long Infeed bed
A long wide in-feed table ensures timber is fed efficiently, also folding for transport
