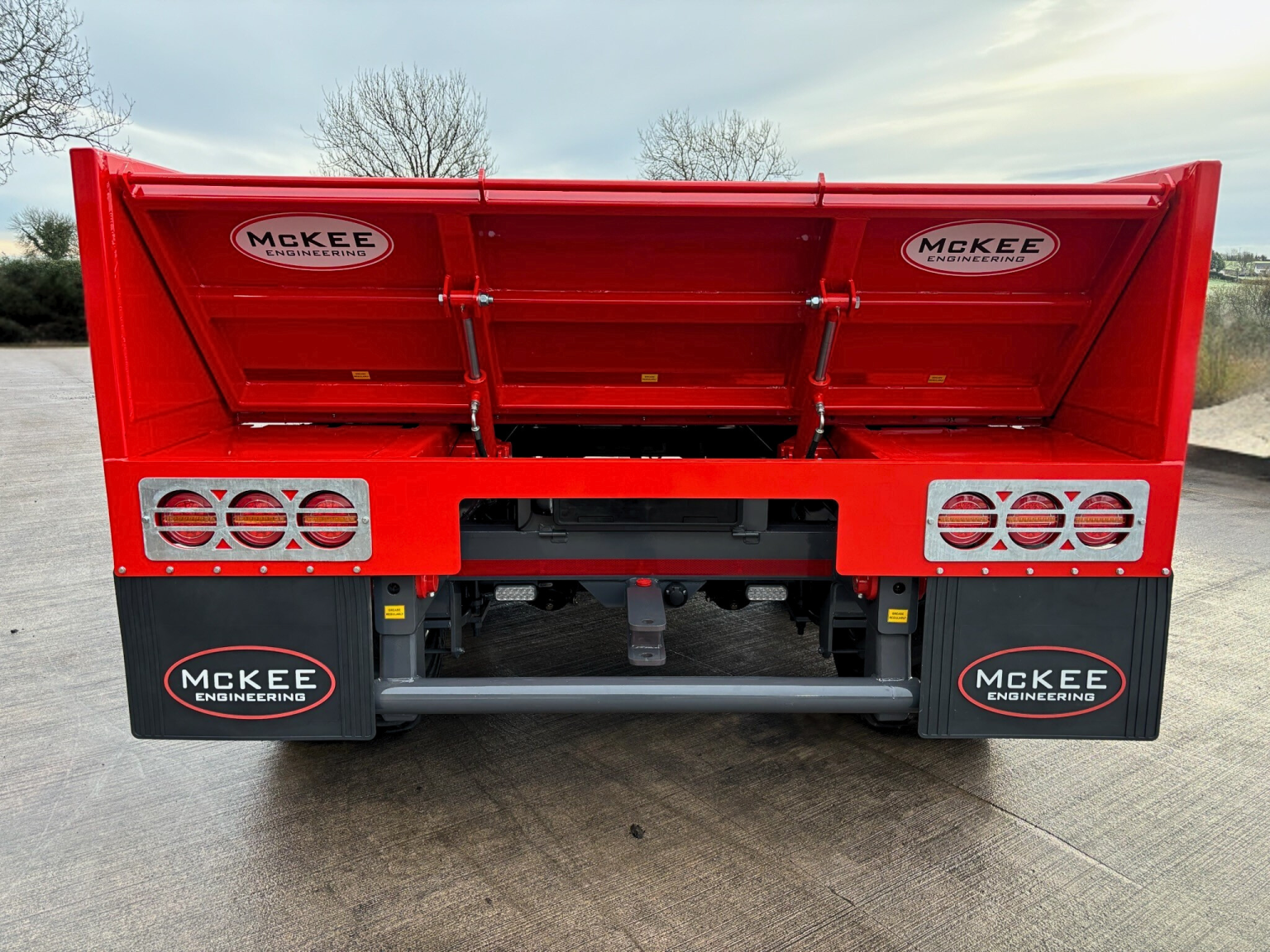

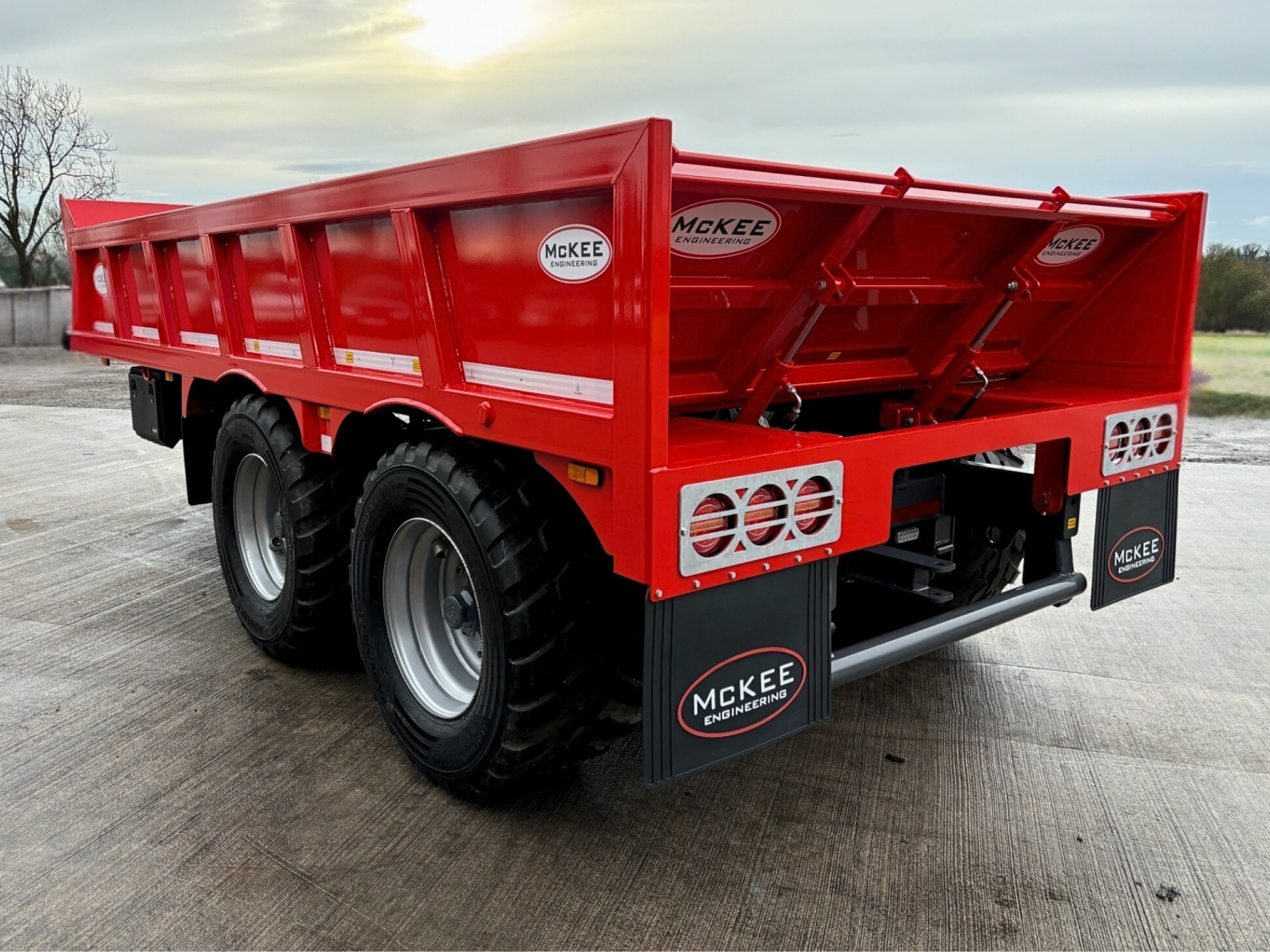

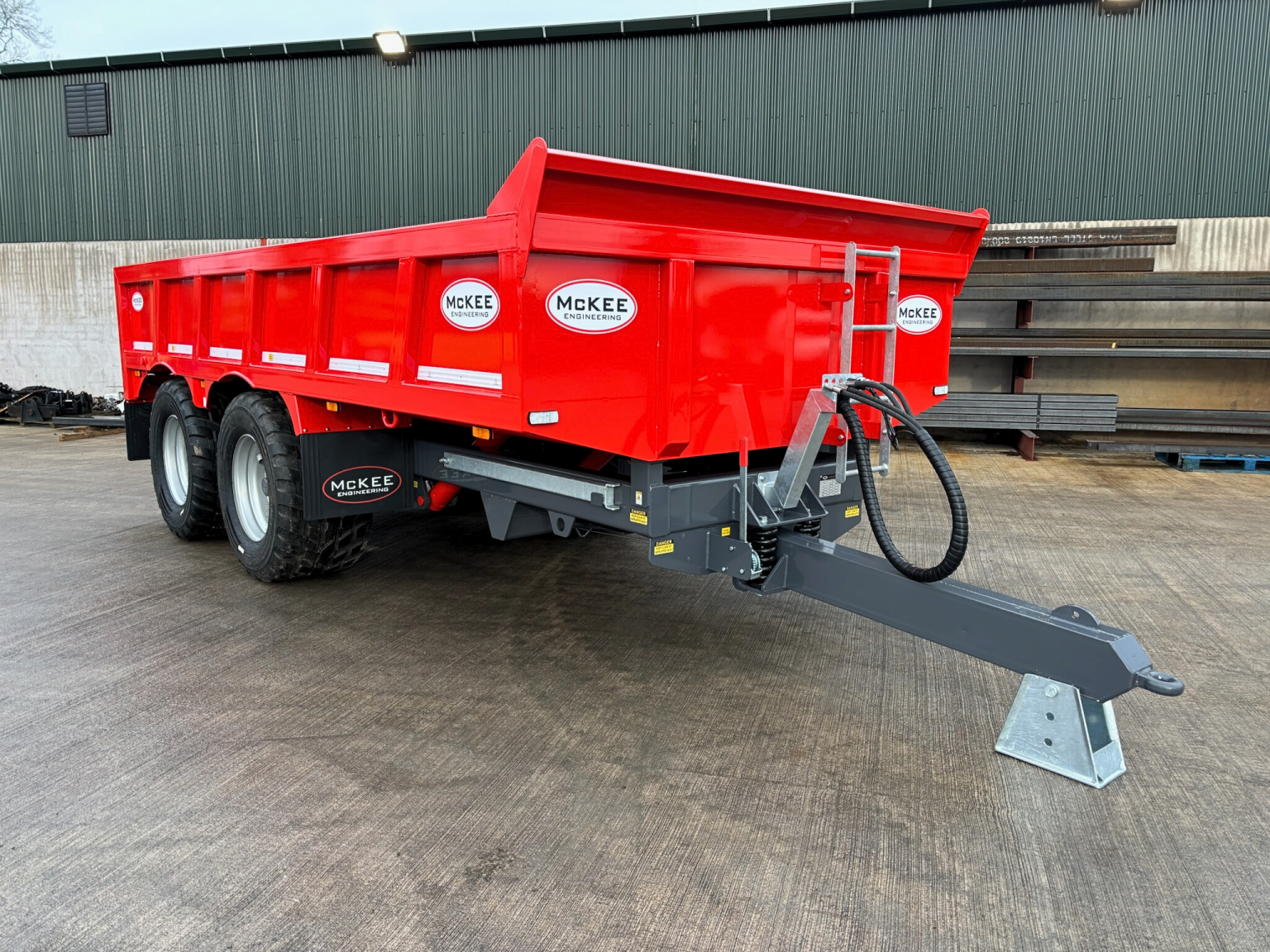

16-Ton Multipurpose Dump Trailer
& Free Shipping
- Trailer Body Size: 4.8m x 2.55m x 0.6m, designed to carry large and heavy loads with ease.
- Main Chassis: 200×100 heavy-wall box section chassis for superior strength.
- Sub Chassis (Body): 150×100 heavy-wall box section for extra structural reinforcement.
- Flooring: 8mm thick plated floor for high-impact resistance and long-lasting durability.
- Side Cribs: 6mm thick fully enclosed box-type frame for added strength and containment.
- Axles: 10-stud 420×180 commercial axles built for heavy-duty performance.
- Suspension: 3-leaf parabolic suspension for improved ride stability and load distribution.
- Wheels: 385x65x22.5 wheels engineered for strong load-bearing and traction.
- Braking System: 4-wheel hydraulic brakes with 25mm brake rams for reliable stopping power.
- Tipping Rams: Twin 12-ton, 43” chrome tipping rams for smooth, efficient tipping action.
- Toe Eye: EN16 40mm toe eye for secure hitching on rough terrain.
- Sprung Drawbar: Constructed from 200×75 channel and internally plated for added towing strength.
- Lighting: LED front, side, and rear lights, including triple rear hamburger lights for maximum visibility.
- Tail Door: Hydraulic fold-down tail door for seamless unloading.
- Safety Features: Reflective tape on sides and rear, rear mud flaps, and a ratchet-type parking brake.
- Finish: Shot blasted and painted with a high-quality 2-pack system in your choice of colour.
- Additional Features: Galvanised Swan Neck, ladder, Body Prop, and Drawbar Stool for extended product life.
- Warranty: 1-year manufacturer’s warranty for peace of mind.
Optional extras available upon request
