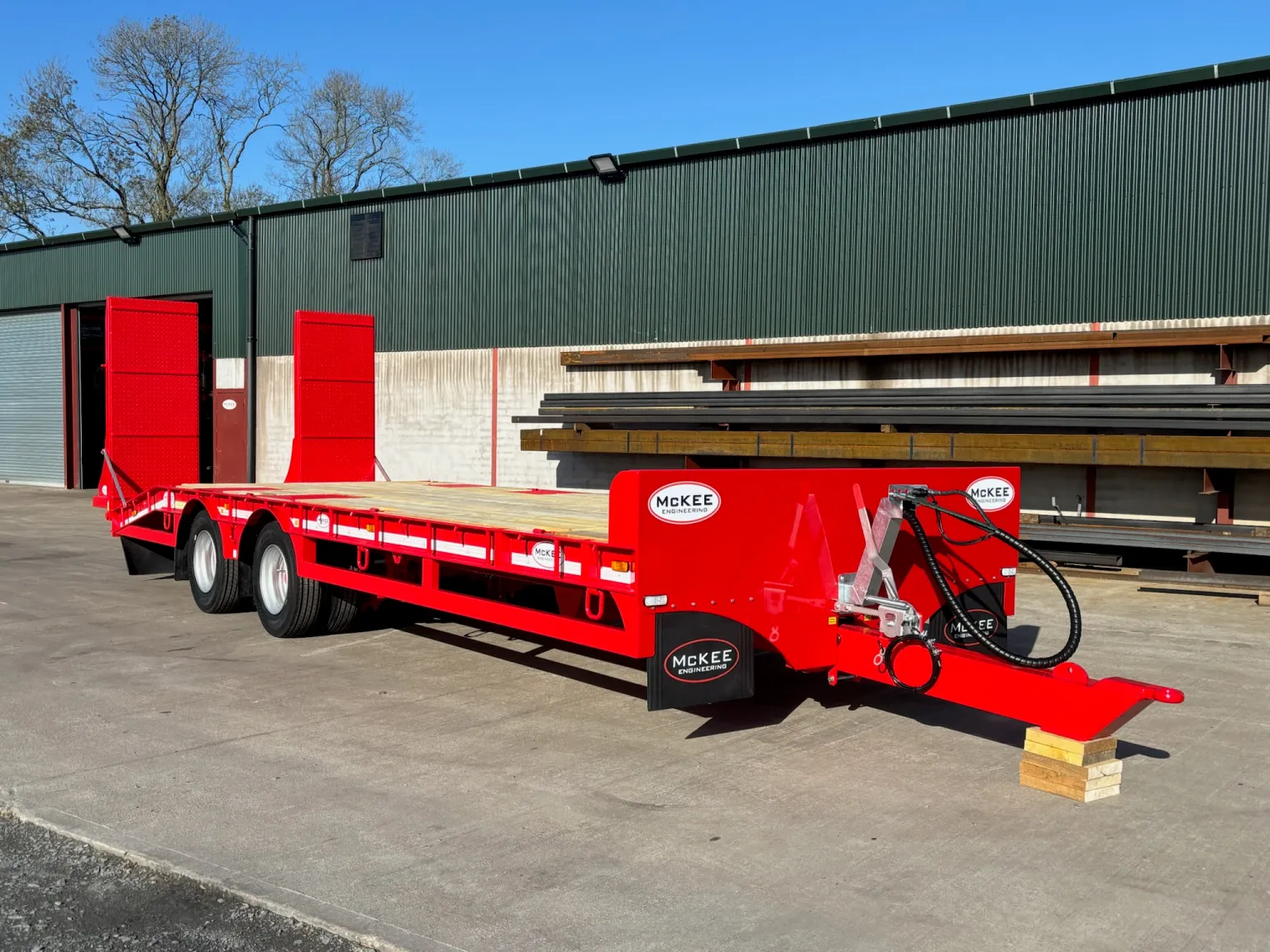

19-Ton Tandem Axle Low Loader

• Load Capacity: 19 ton gross, with a 15 ton max payload.
• Trailer Dimensions: 19ft bed length with a 4ft beaver tail.
• Robust Chassis: 250x150mm I-beam with 200x75mm channel side chimes, plus D-shackles, rope hooks, and tying bars.
• Suspension & Axles: 8-stud HOS Agri axles with 7 leaf high-rock suspension.
• Braking System: Hydraulic brakes with 25mm brake rams.

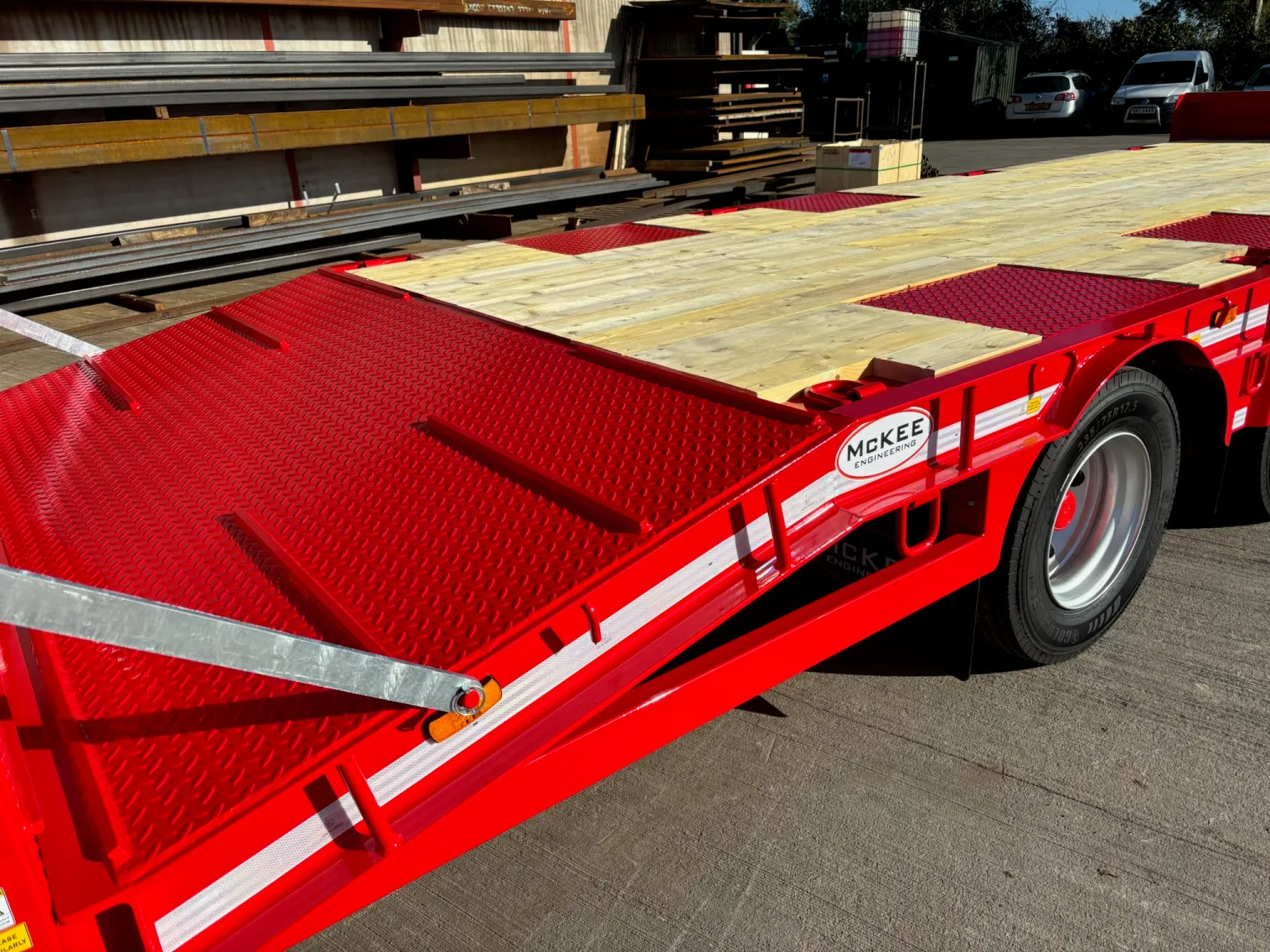

• Sprung Ramps: 680mm wide, made from 100x50x5mm high-tensile box section.
• Durable Plating & Flooring: 5mm plating on headboard, 5mm checker plating on the beaver tail and ramps, plus pressure-treated timber flooring.
• Sprung Drawbar for smoother towing.
• Reliable Tyres: New J-rated Linglong road tyres (215x75x17.5).
• Lighting & Safety: LED front, side, and taillights, triple rear hamburger lights, and reflective tape.
• Extras & Storage: Large toolbox, galvanised swan neck, and ramp straps.
• Premium Finish: Shot-blasted and painted in a colour of your choice with 2-pack paint.
• 1 Year Warranty for peace of mind.

Optional extras available upon request
